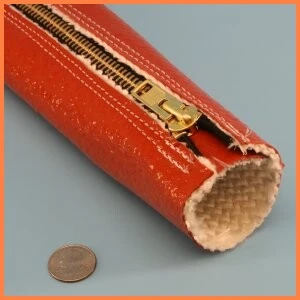

Firesleeve with Zipper Closure
High Temperature, Heat & Flame Resistant Protection for Wire, Cables, Hoses and Tubing with Zipper Closure
500°F / 260°C Continuous Exposure
800°F / 426°C Short Term Exposure
2200°F / 1205°C Excursions
3000°F / 1650°C Peak Exposure
ZipSleeveTM high temperature, heat resistant and thermal insulation sleeve provides molten splash & weld splatter protection to wires, cables, hoses, tubes and pipes. ZipSleeveä provides a field installable protection sleeve utilizing a nomex zipper with brass teeth instead of Velcro closure strips.
ZipSleeve can endure the most demanding of liquid metal splash and heavy weld splatter and may be more suitable than a hook and loop closure for some applications.. This sleeve also provides energy savings and personnel protection.
Available in standard sizes from 1" through 12" ID; custom sizes are available.
The standard maximum length of a zipper is 25 feet / 7.5 metres. Longer zippers up to 150 feet / 45 metres are possible, but will incur minimum order quantities.
Meets 14 CFR 25.869(a)(4); Appendix F, Part 1(b)(7) (60-degree flammability Test).
Special ordering notes:
If you are ordering one length of sleeve with zipper closure - for example 7 feet... Then order a quantity of 7 x 1 foot units and indicate in the special instructions area of the checkout that it is one 7 foot length. If you are ordering 2 lengths, for example 10 feet and 5 feet - then make the total 15 x 1 foot units and indicate in the checkout notes that it is 2 lengths - one at 10 feet and one at 5 feet. If you require more precise lengths such as 11 feet 4 inches in length - then order the next foot increment higher (12 x 1 foot units) and indicate in the notes the finished overall length is 11 feet 4 inches. Our shipping calculator will not provide an accurate cost for this item at checkout but we will review the actual cost at time of shipping and advise you of any additional payment required or if there is a credit due. For complex orders please contact us.
Part numbers:
S-FS-ZC-M025-16, S-FS-ZC-M029-18, S-FS-ZC-M032-20, S-FS-ZC-M035-22, S-FS-ZC-M038-24, S-FS-ZC-M041-26, S-FS-ZC-M044-28, S-FS-ZC-M048-30, S-FS-ZC-M051-32, S-FS-ZC-M057-36, S-FS-ZC-M064-40, S-FS-ZC-M067-42, S-FS-ZC-M070-44, S-FS-ZC-M073-46, S-FS-ZC-M076-48, S-FS-ZC-M083-52, S-FS-ZC-M089-56, S-FS-ZC-M095-60, S-FS-ZC-M102-64, S-FS-ZC-M114-72, S-FS-ZC-M127-80, S-FS-ZC-M133-84, S-FS-ZC-M140-88, S-FS-ZC-M146-92, S-FS-ZC-M152-96, S-FS-ZC-M159-100, S-FS-ZC-M165-104, S-FS-ZC-M171-108, S-FS-ZC-M178-112, S-FS-ZC-M184-116, S-FS-ZC-M191-120, S-FS-ZC-M197-124, S-FS-ZC-M203-128, S-FS-ZC-M210-132, S-FS-ZC-M216-136, S-FS-ZC-M222-140, S-FS-ZC-M229-144
